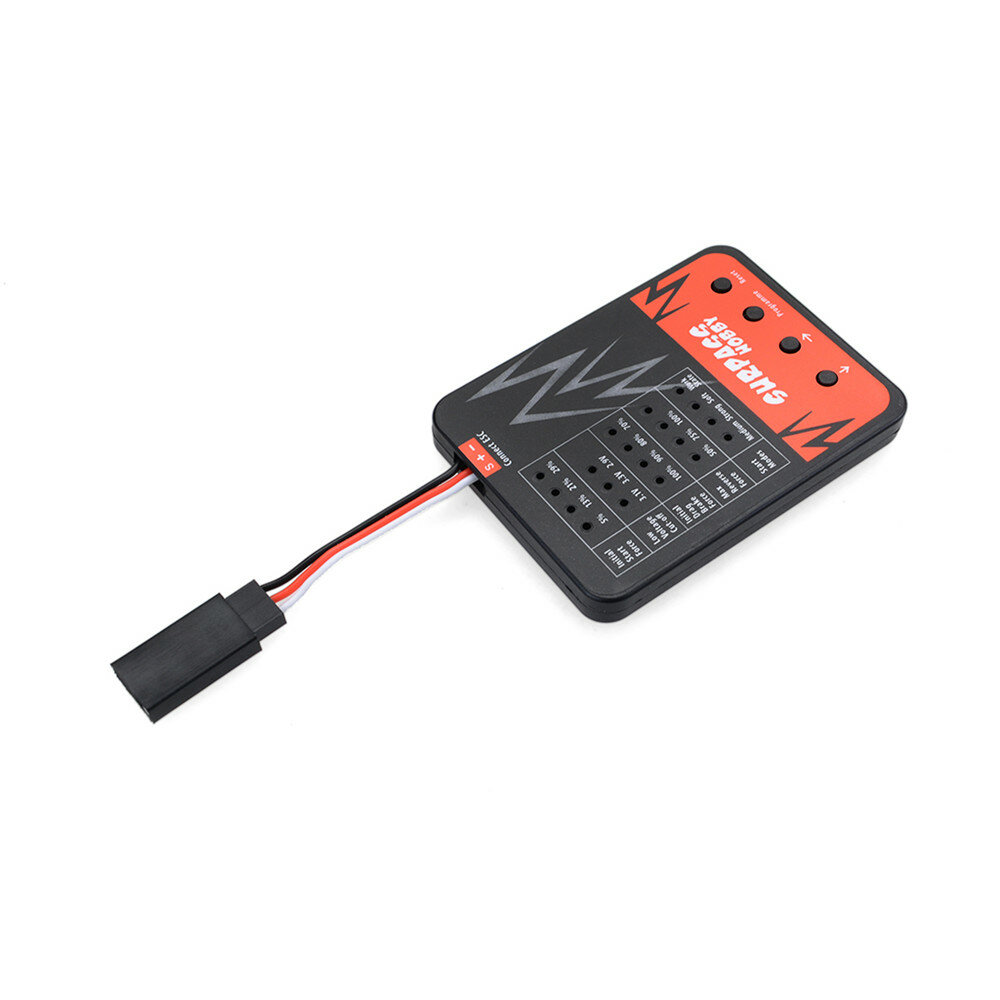

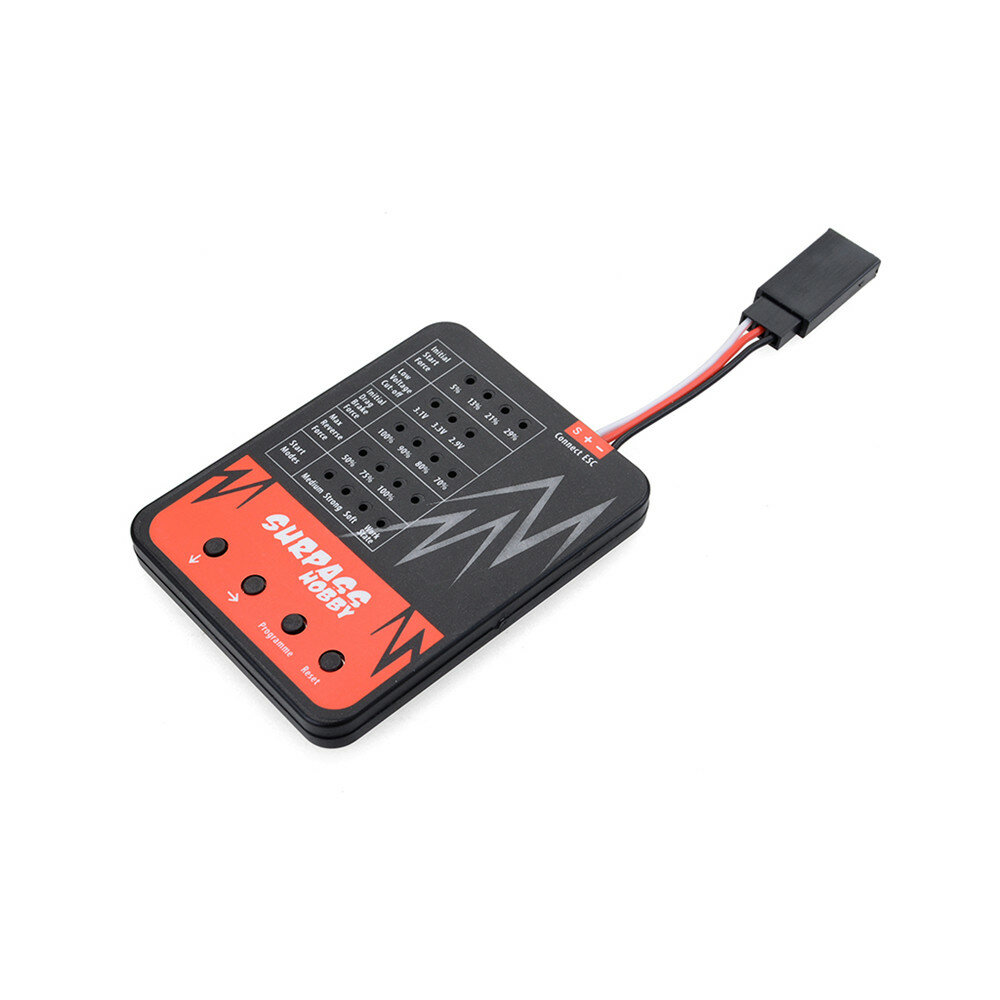

Surpass Hobby LED Program Card For 1/10 Crawler Brushed ESC With BEC 6V/2A
3
Direct purchase from the factory
Pembayaran Aman Terjamin
Hadiah Gratis
Kebijakan Pengiriman
Kebijakan PengembalianHadiah Gratis
Selamat datang di Roymall, situs web profesional Anda untuk membeli hadiah toko serba ada berkualitas tinggi. Kami sangat menghargai dan menghargai dukungan Anda, dan kami ingin mengungkapkan rasa terima kasih kami dengan menambahkan sentuhan kegembiraan ekstra pada pembelian Anda. Saat Anda berbelanja dengan kami, Anda tidak hanya akan menikmati produk berkualitas tinggi yang meningkatkan gaya hidup Anda, tetapi Anda juga akan menerima hadiah gratis eksklusif dengan setiap pesanan Anda. Siap menjelajahi koleksi kami dan menemukan hadiah sempurna Anda? Jelajahi pilihan kami dari barang-barang toko serba ada berkualitas tinggi, tempatkan pesanan Anda, dan nantikan kegembiraan hadiah gratis Anda yang akan tiba bersama pembelian Anda.Kebijakan Pengiriman
Kami akan bekerja keras untuk mengirimkan barang kepada Anda setelah menerima pesanan Anda dan memastikan mereka tiba dengan aman. Detail pengiriman akan disediakan dalam email konfirmasi Anda.Dalam kebanyakan kasus, pesanan diproses dalam 2 hari. Dalam keadaan khusus, ini akan tertunda sebagai berikut: Ketika Anda melakukan pemesanan pada hari Sabtu, Minggu atau hari libur, itu akan tertunda selama 2 hari.Biasanya, dibutuhkan 5-7 hari kerja (Senin hingga Jumat) tanpa terpengaruh oleh penundaan penerbangan atau faktor lingkungan lainnya.Karena layanan pengiriman kami bersifat global, waktu pengiriman akan tergantung pada lokasi Anda, sehingga mungkin membutuhkan beberapa waktu dan harap bersabar jika Anda berada di distrik atau negara terpencil.1. Kebijakan Pengembalian & Penukaran
Kami hanya menerima barang yang dibeli dari roymall.com. Jika Anda membeli dari distributor lokal kami atau pengecer lain, Anda tidak dapat mengembalikannya kepada kami. Barang penjualan akhir atau hadiah gratis tidak dapat diterima untuk pengembalian.Untuk memenuhi syarat pengembalian, barang Anda harus tidak digunakan dan dalam kondisi yang sama seperti saat Anda menerimanya. Itu juga harus dalam kemasan aslinya.Setelah menerima instruksi pengembalian dari kami, silakan kemas barang yang akan dikembalikan dan tinggalkan paket Anda di kantor pos lokal atau kurir lain.Kami akan memproses barang pengembalian atau penukaran Anda dalam 3-5 hari kerja setelah kami menerimanya. Pengembalian dana akan diproses dan dikreditkan secara otomatis ke metode pembayaran asli Anda.Tidak ada pengembalian atau penukaran yang dapat diterima jika produk diproduksi secara khusus, termasuk ukuran khusus, warna khusus, atau cetakan khusus.Butuh bantuan lebih lanjut, silakan hubungi kami. service@roymall.com atau Whatsapp: +8619359849471
2. Kebijakan Pengembalian Dana
Anda akan mendapatkan pengembalian dana penuh atau 100% kredit toko setelah kami menerima dan memeriksa paket yang dikembalikan. Pengembalian dana akan diproses dan dikreditkan secara otomatis ke metode pembayaran asli Anda.Harap dicatat bahwa biaya pengiriman dan biaya atau bea apa pun tidak dapat dikembalikan. Biaya pengiriman tambahan tidak dapat dikembalikan setelah paket dikirim. Anda bertanggung jawab untuk membayar biaya ini dan kami tidak dapat membebaskan atau mengembalikannya, bahkan jika pesanan dikembalikan kepada kami.Setelah kami menerima dan mengonfirmasi barang yang dikembalikan, kami akan mengirimkan email kepada Anda untuk memberi tahu Anda bahwa kami telah menerima barang yang dikembalikan. Kami juga akan memberi tahu Anda tentang persetujuan atau penolakan pengembalian dana Anda.Jika Anda memiliki masalah terkait proses pengembalian dana, silakan hubungi kami. service@roymall.com atau Whatsapp: +8619359849471
DECLARATION
This is Electronic Speed Controller (ESC) for Crawler Brushed. High power system for RC model is not good, so please read this manual carefully. Since we canu2019t control over the correct use, installation, application, or maintenance of our products, weu2019ve no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product. Any claims arising from the operating, failure of malfunctioning etc. will be denied. We assume no liability for personal injury, consequential damages resulting from our product or our workmanship.
FEATURES
1. Specially designed for RC Crawler Brushed car with excellent throttle linearity and driving feel.
2. Compatible with brush motor.
3. The strong resistant current capability, excellent heat dissipation.
4. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection /
5. Easily programmed and compatible with pocket-sized program card.
Specifications
1. Cont. Current/ Burst Current:60A/320A.
2. Resistance:0.0014ohm
3. Motor Type: brush motor.
4. Suitable Car:1/10 Crawler Brushed.
5. Battery:2~3 cells Lipo,4~9 cells NiMH.
6. BEC:6V/2A (switch mode).
7. Dimension:32mm*37mm*18mm
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits u201cBeepinchs tone.
6. When the throttle stick is in the neutral position, the motor re-emits u201cBeepinchs tone.
7. The ESC is workable.
Troubleshooting
1. If after power on, motor canu2019t work, no sound is emitted, please check the connections between battery pack and motor.
2. If the motor emits a u201cBeepinchs tone Only, please check all the connections: BEC wires, transmitter and receiver, throttle signal wires, etc. please check the transmitter TH.TRIM and adjust it to the motor re-emits u201cBeepinchs tone.
3. If the car canu2019t be speed up, please check either voltage of the battery pack is too low or the temperature of ESC is too high. If the voltage of the battery pack is too low, please replace the battery pack. If the temperature of ESC is too high, please check all connections. If not, please push the button EPA on your remote control.
4. If the car stops suddenly while in working state, please check the motoru2019s connections, and the barrier.
5. If the car runs in the opposite direction, which the transmitter is available, please swap two wire connections between the ESC and the motor.
Set the ESC
ESC uses the jumper cap to set battery type.

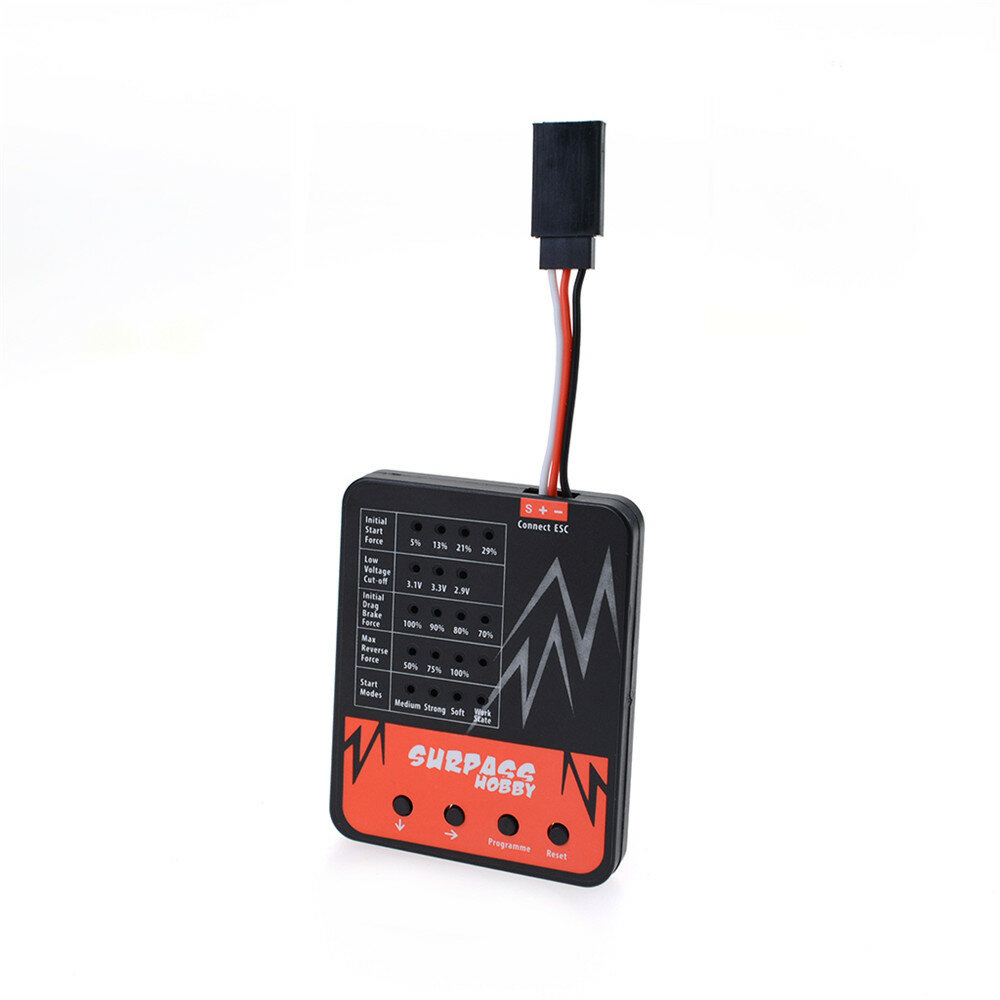

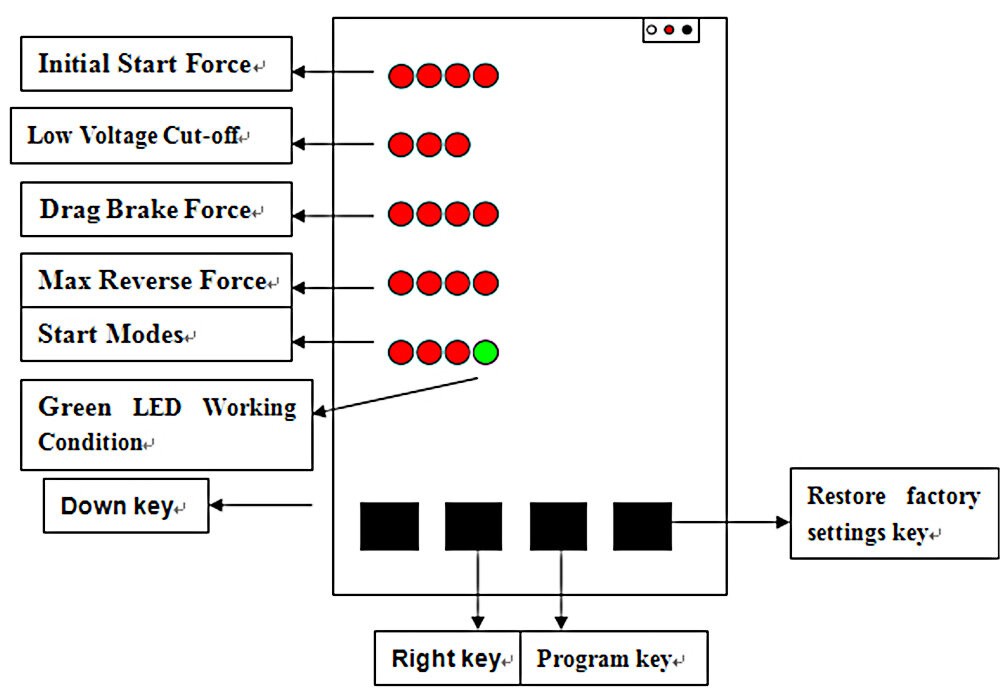

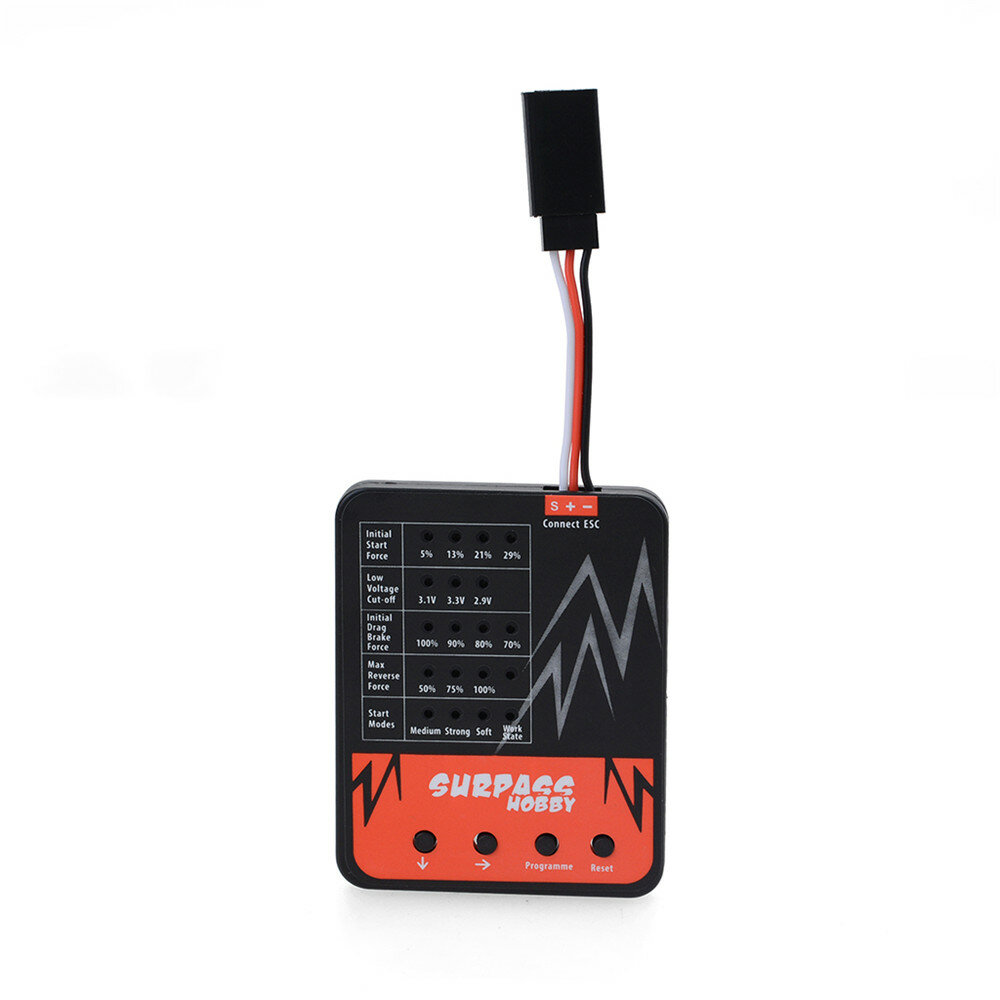

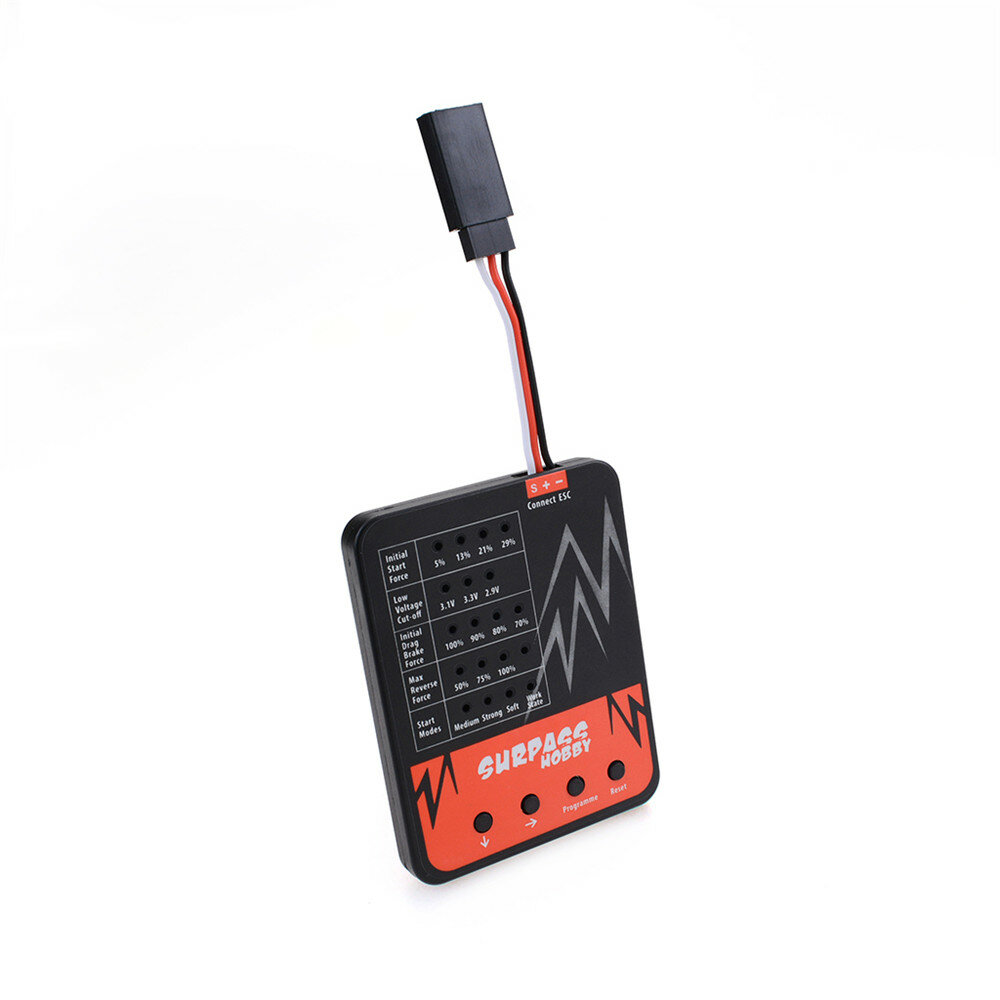

Programme card Appearance description:see more details in the picture
1:Initial Start Force:5%,13%.21%.32% (default value 5%)
2:Low Voltage Cut-Off: The function is mainly to prevent the lithium battery pack from over discharging. When using lithium battery pack, please set the suitable v alue for low-voltage protection as your like. WARNING: Never use the default value u201cNon-protectioninchs for lithium battery! 3.1V,3.3V,2.9V
(default value 3.1V)
3:Drag Brake Force: 100%,90%,80%,70%(
Max Reverse Force: 95%,75%,50%(default value 95%)
5:3 Start Modes (Also called u201cPunchinchs) from u201csoftinchs to u201cvery aggressiveinchs (default value Medium)
Programme card way:
1.Connect BEC wires with the program car then turn on the ESC.
2.The Green LED flashes for 2 times then LED off, that is, the connecting program car with ESC is successful, and the Red LED on presents the current value of that item. Otherwise, the connecting is failed.
3.Please press the Key u201cu2193inchs to select different programs
4.Please press the Key u201cu2192inchs to select different value of the current program
5.Please press the Key u201cPrograminchs to confirm above selections, the Green LED on immediately and has gone out within 5 seconds, that is, this process is successful.
6.Please press the Key u201cResetinchs to reset the factory setting.
Package list:
1x program card
This is Electronic Speed Controller (ESC) for Crawler Brushed. High power system for RC model is not good, so please read this manual carefully. Since we canu2019t control over the correct use, installation, application, or maintenance of our products, weu2019ve no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product. Any claims arising from the operating, failure of malfunctioning etc. will be denied. We assume no liability for personal injury, consequential damages resulting from our product or our workmanship.
FEATURES
1. Specially designed for RC Crawler Brushed car with excellent throttle linearity and driving feel.
2. Compatible with brush motor.
3. The strong resistant current capability, excellent heat dissipation.
4. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection /
5. Easily programmed and compatible with pocket-sized program card.
Specifications
1. Cont. Current/ Burst Current:60A/320A.
2. Resistance:0.0014ohm
3. Motor Type: brush motor.
4. Suitable Car:1/10 Crawler Brushed.
5. Battery:2~3 cells Lipo,4~9 cells NiMH.
6. BEC:6V/2A (switch mode).
7. Dimension:32mm*37mm*18mm
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits u201cBeepinchs tone.
6. When the throttle stick is in the neutral position, the motor re-emits u201cBeepinchs tone.
7. The ESC is workable.
Troubleshooting
1. If after power on, motor canu2019t work, no sound is emitted, please check the connections between battery pack and motor.
2. If the motor emits a u201cBeepinchs tone Only, please check all the connections: BEC wires, transmitter and receiver, throttle signal wires, etc. please check the transmitter TH.TRIM and adjust it to the motor re-emits u201cBeepinchs tone.
3. If the car canu2019t be speed up, please check either voltage of the battery pack is too low or the temperature of ESC is too high. If the voltage of the battery pack is too low, please replace the battery pack. If the temperature of ESC is too high, please check all connections. If not, please push the button EPA on your remote control.
4. If the car stops suddenly while in working state, please check the motoru2019s connections, and the barrier.
5. If the car runs in the opposite direction, which the transmitter is available, please swap two wire connections between the ESC and the motor.
Set the ESC
ESC uses the jumper cap to set battery type.
Programme card Appearance description:see more details in the picture
1:Initial Start Force:5%,13%.21%.32% (default value 5%)
2:Low Voltage Cut-Off: The function is mainly to prevent the lithium battery pack from over discharging. When using lithium battery pack, please set the suitable v alue for low-voltage protection as your like. WARNING: Never use the default value u201cNon-protectioninchs for lithium battery! 3.1V,3.3V,2.9V
(default value 3.1V)
3:Drag Brake Force: 100%,90%,80%,70%
Max Reverse Force: 95%,75%,50%(default value 95%)
5:3 Start Modes (Also called u201cPunchinchs) from u201csoftinchs to u201cvery aggressiveinchs (default value Medium)
Programme card way:
1.Connect BEC wires with the program car then turn on the ESC.
2.The Green LED flashes for 2 times then LED off, that is, the connecting program car with ESC is successful, and the Red LED on presents the current value of that item. Otherwise, the connecting is failed.
3.Please press the Key u201cu2193inchs to select different programs
4.Please press the Key u201cu2192inchs to select different value of the current program
5.Please press the Key u201cPrograminchs to confirm above selections, the Green LED on immediately and has gone out within 5 seconds, that is, this process is successful.
6.Please press the Key u201cResetinchs to reset the factory setting.
Package list:
1x program card
